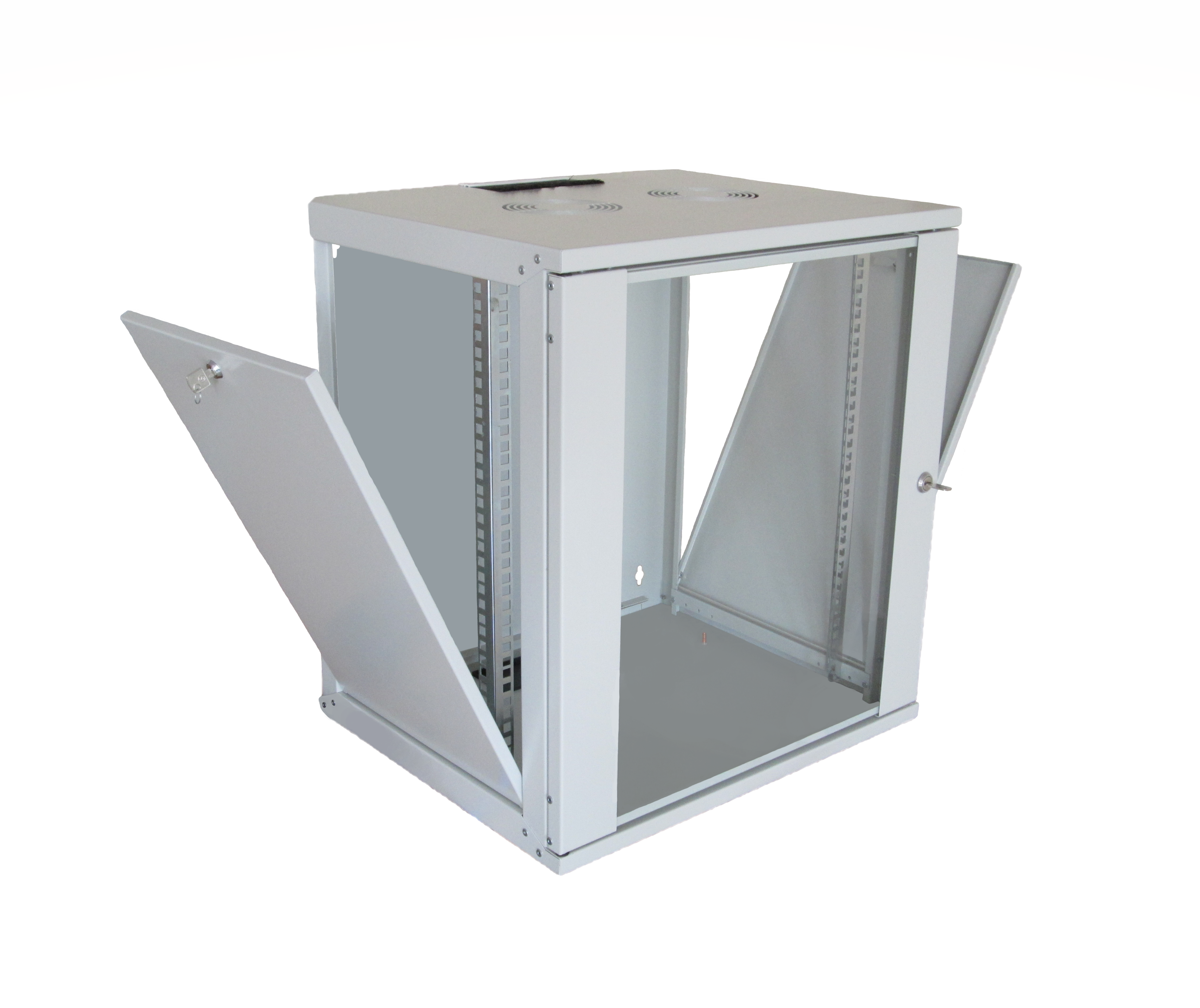

Product Info:
Wall mounted enclosure cabinets offer a cost-effective alternative for cabling installations. This series is utilized in workplaces for horizontal parts where a low U height is necessary while maintaining an appealing and professional appearance. Cabinets in RAL 7035 with left and right metal frames can be used in the most demanding office environments where appearance is important.
Size: 19 Inch - 7U , 9U , 12U , 16U , 20U
Material: 1mm DKP sheet metal ,1.2 mm DKP sheet metal
IP Classification:  IP 20, Standard, Ip40 with flat metal cover
Color Options:RAL 9005 Black, RAL 7035 Light Grey
Loading Capacity: Suggested weight load 80 kg
Side Doors: Has locking system. Can be easily disassembled.
Bottom Plate: 1 opening for PVC cable with plastic cover.Leveling feet can be attached.
Rear Panel (door):Several door options 1 opening for PVC cable with plastic cover.Can be used as a Rear Panel mounting fixture.
Front Doors: Several door optionsSingle point locking Doors can be opened up to 236 degrees. Can be opened from the both sides (left and right).
Interior Parts (19" mounting angles):Solid metal, 1.5mm DX51D+ZN275 Zinc plated, galvanized Adjustable in depth.
